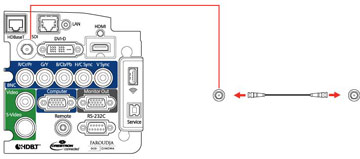

Connecting to an SDI Video Source

If your video source has an SDI port, you can connect it to the projector using an optional BNC video cable (PowerLite Pro Z9870UNL/Z10000UNL/Z10005UNL).
  1. Connect the BNC video cable to your video source's SDI output port.
  2. Connect the other end to the projector's SDI port.
