Attaching a Lens

You can attach a compatible lens to the projector.
Caution:
Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.

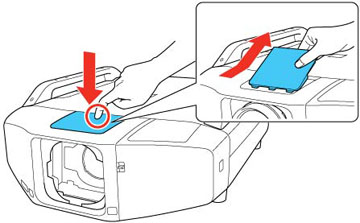

  1. Press down on the lens cover and lift it off of the projector.


  2. Slide the lock lever to the Release position (counterclockwise) until you hear it click.

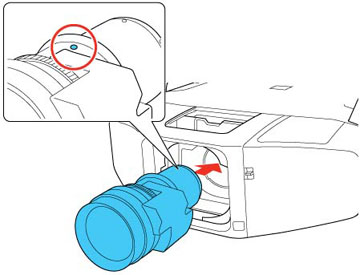

  3. Insert the lens straight into the projector's lens socket with the white dot facing up.

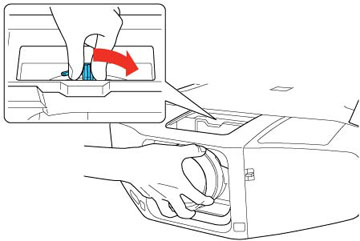

  4. Hold the lens firmly and slide the lock lever to the Lock position (clockwise) until it locks.

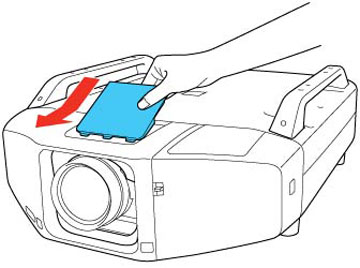

  5. Replace the lens cover.


  6. Set the Lens Type setting in the Extended menu for the type of lens you installed.
