- Press the Menu button on the remote control.
- Select the Extended menu and press Enter.

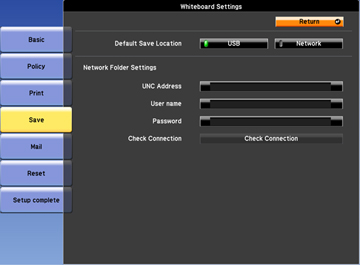

- Select Whiteboard Settings and press Enter.
- Select Save and press Enter.
- Select
the following options for saving as necessary:
- Default Save Location lets you select either USB or Network for saving on a USB thumb drive or network folder. You can change this setting when you save in whiteboard mode, but not in annotation mode.
- UNC Address (Universal Naming Convention) lets
you set a folder and path in the following format: \\host
name\share name. You can use an IP address or a NetBIOS name as the
host name. You can enter up to 63 alphanumeric characters for the
address.
When an IP address is set as the host name, the projector communicates with the file sharing server using the CIFS protocol. If a routing configuration is used for the TCP protocol, the subnet is skipped and communication is performed outside the subnet.
When a NetBIOS name is set as the host name, the projector communicates with the file sharing server using the SMB protocol.
Note: The folder must be on a shared network drive. To save to a folder on a different network segment, use the WINS server setting on the wired or wireless network menu. - User name lets you set the a user name with read/write privileges on the network folder. You can enter up to 64 alphanumeric characters. You can enter a domain name by adding it before the user name and separating them with a backslash (domain\username).
- Password lets you enter a password for the user name. You can enter up to 64 alphanumeric characters. After you enter the password and select Setup complete, the password is hidden.
- Check Connection lets you test the network connection.
Note: Use the displayed keyboard to enter the address, user name, and password if necessary. Press the arrow buttons on the remote control to highlight numbers and press Enter to select them. - When you finish selecting settings, select Setup Complete and follow the on-screen instructions to save your settings and exit the menus.
