Connecting to a Shared Whiteboard from a Projector

You can connect another projector on the same network to a projector that is sharing its whiteboard.
  1. Press the Whiteboard button on the remote control or control pad, or select the whiteboard icon on the toolbar. The projector displays the whiteboard.

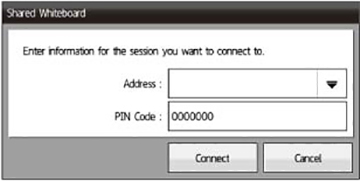

  2. Press the share icon on the bottom toolbar. The projector displays the Shared Whiteboard dialog.


  3. Select Connect to the shared whiteboard. The projector displays the Shared Whiteboard dialog.


  4. Enter the IP address and PIN code for the projector you want to connect to.
    Note: To display the addresses for the last five projector connections, select the arrow icon next to the address field.
  5. Press the Connect button. Both projectors display the shared whiteboard screen.
To disconnect from the shared whiteboard, select the share icon on the bottom toolbar and select Disconnect.
