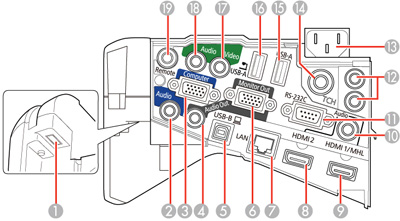

| 1 | Wireless LAN module port |
| 2 | Audio port |
| 3 | Computer port |
| 4 | Audio Out port |
| 5 | USB-B port |
| 6 | Monitor Out port |
| 7 | Network (LAN) port |
| 8 | HDMI 2 port |
| 9 | HDMI 1/MHL port |
| 10 | Audio port |
| 11 | RS-232C port |
| 12 | SYNC In/Out ports |
| 13 | Power inlet |
| 14 | TCH port for the Touch Unit connection cable (BrightLink Pro 1430Wi) |
| 15 | USB-A port |
| 16 | USB-A port (for document camera) |
| 17 | Video port |
| 18 | Audio port |
| 19 | Remote port (for optional connection to the Control Pad) |
