Connecting to an External Computer Monitor

If you connected the projector to a computer using a Computer port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

If you want to output images to an external monitor when the projector is turned off, you need to select Communication On as the Standby Mode setting and Always On as the A/V Output setting in the projector's menu system.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.
  1. Make sure your computer is connected to the projector's Computer port.

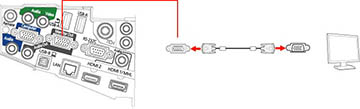

  2. Connect the external monitor's cable to your projector's Monitor Out port.


    Note: Only analog RGB signals from the Computer port can be output to an external monitor.
    Note: Content you draw using the interactive features is not displayed on an external monitor unless you draw it using Easy Interactive Tools.
