Installing Batteries in the Control Pad

The control pad uses two AA batteries.
Note: If you have the optional remote control cable set (ELPKC28), you can use it instead of batteries to power the control pad.

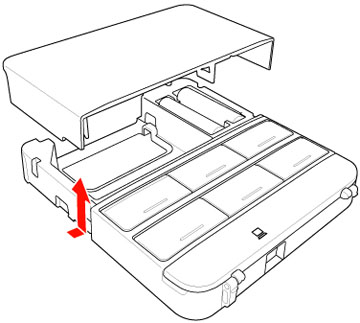

  1. Remove the top cover of the control pad by prying it off as shown.


  2. Insert the batteries with the + and – ends facing as shown.

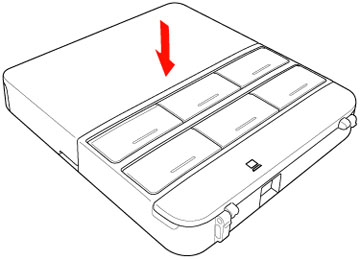

  3. Replace the cover and press it down until it clicks into place.


Parent topic: Setting Up the Projector
