Installing the Projector Feet

To use the projector on a table or cart, you first need to install the feet (BrightLink Pro 1420Wi). You can then use the feet to adjust the image position.

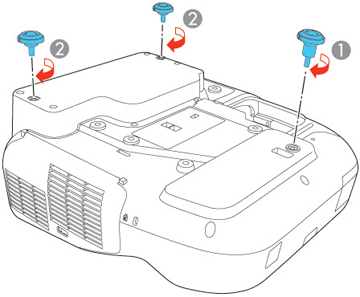

  1. Turn the projector upside down.
  2. Insert the larger front foot into the hole at the front of the projector.


    1 Front foot (larger)
    2 Rear feet
  3. Insert the two smaller rear feet into the holes at the back of the projector.
