Focusing the Image with Focus Help

You can use the projector's Focus Help feature to focus the image.
Focus Help works in these conditions:
  • Screen size is 100 inches (254 cm) or less
  • The room is not too bright

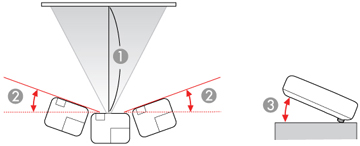

  • Projector is positioned within the distances and angles listed here:


    PowerLite 1980WU/1985WU

    1 5 to 10 feet (1.5 to 3 m)
    2 20º
    3 30º

    PowerLite 1970W/1975W

    1 3 to 10 feet (0.9 to 3 m)
    2 20º
    3 30º
  1. Press the Focus Help button on the projector.

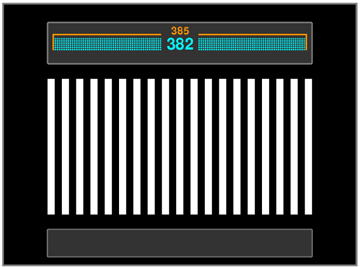

    You see a screen like this:


  2. Turn the focus ring until the green number matches the orange number as closely as possible.


  3. When you are finished, press Esc.
Parent topic: Using Basic Projector Features
