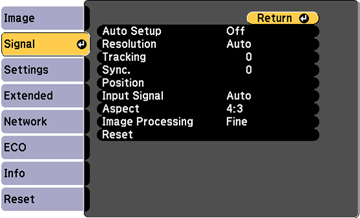

Input Signal Settings - Signal Menu

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.

Note: You can restore the default settings of the Position, Tracking, and Sync settings by pressing the Auto button on the remote control.

To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description
Auto Setup On


Automatically optimizes computer image quality (when On)
Resolution Auto



Sets the input signal resolution if not detected automatically using the Auto option
Tracking Varying levels available Adjusts signal to eliminate vertical stripes in computer images
Sync. Varying levels available Adjusts signal to eliminate fuzziness or flickering in computer images
Position Up, down, left, right Adjusts the image location on the screen
Progressive Off



Sets whether to convert interlaced-to-progressive signals for certain video image types

Off: for fast-moving video images

Video: for most video images

Film/Auto: for movies, computer graphics, and animation

Noise Reduction Off



Reduces flickering in analog images in two levels
HDMI Video Range Auto



Sets the video range to match the setting of the device connected to the HDMI input port

Auto: detects the video range automatically

Normal: normally for images from a device other than a computer; can also be selected if the black areas of the image are too bright

Expanded: normally for images from a computer; can also be selected if the image is too dark

Input Signal Auto



Specifies the signal type from input sources connected to computer ports

Auto: detects signals automatically

RGB: corrects color for computer/RGB video inputs

Component: corrects color for component video inputs

Video Signal Auto

Various video standards

Specifies the signal type from the input sources connected to the video ports

Auto: detects signals automatically

Aspect See the list of available aspect ratios Sets the aspect ratio (width-to-height ratio) for the selected input source
Overscan Auto




Changes the projected image ratio to make the edges visible by a selectable percentage or automatically
Image Processing Fine


Adjusts image processing speed/quality
Note: The Noise Reduction setting is not available if you have done the following:
  • Set the Image Processing option to Fast
  • Set the Progressive setting to Off
  • Selected a digital RGB or an interlaced (480i/567i/1080i) input signal
