Placing Originals in the Automatic Document Feeder

You can place multi-page original documents in the Automatic Document Feeder (ADF). Make sure the originals meet the Automatic Document Feeder specifications before loading them.
Caution:
Make sure your originals are not creased or folded, and do not contain holes, staples, tape, or other materials that could obstruct the feeder.

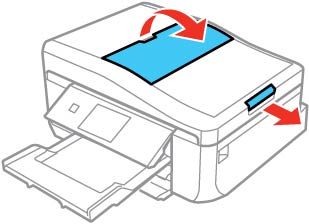

  1. Open the ADF paper support, and then slide out the output tray extension.

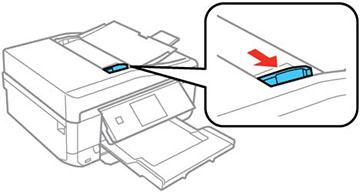

  2. Slide the ADF edge guide outward.

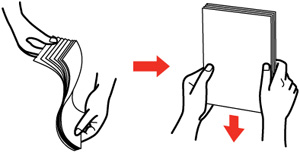

  3. Fan your stack of originals and tap them gently on a flat surface to even the edges.

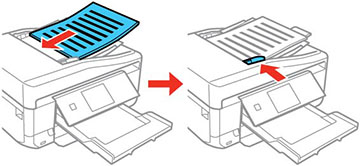

  4. Insert the originals into the ADF faceup and top-edge first. Then slide the edge guide against the originals, but not too tightly.

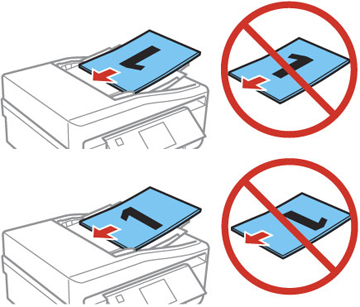

    Note: If you're using the Letter, 2-up Copy, or A4, 2-up Copylayout, make sure the originals are loaded as shown.
