Loading Paper in Cassette 1 (Upper Cassette)

You can load photo paper and other media in these sizes in the upper paper cassette:
Note: Do not remove or insert the paper cassette during printing.
  1. Raise the control panel, if necessary.

  2. Close the output tray by pressing the  open/close output tray button or by hand, if necessary.

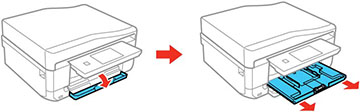

  3. Open the front cover and pull out the upper cassette.

    Note: If the upper cassette is too far inside, turn the product off and on again.
  4. Slide the edge guides outward.

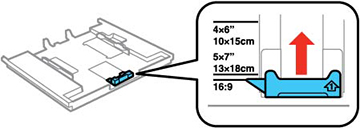

  5. Set the front edge guide to the position for the paper size you are using.

  6. Insert paper with the glossy or printable side facedown.

    Note: Make sure the paper is loaded against the front edge guide.
  7. Slide the side edge guides against the paper, but not too tightly.

    Note: Make sure the paper is under the tabs on the edge guides.
  8. Keep the cassette flat as you insert it until the arrow marks on the tray and product line up.

  9. If prompted by the product's LCD screen, select the size and type of the paper you loaded, and select Done.
    Note: The output tray opens automatically when you print.
Always follow these paper loading guidelines:
