You can
place originals up to this size on the scanner glass:
Letter (8.5 × 11 inches
[216 × 279 mm]) or A4
(8.3 × 11.7 inches
[210 × 297 mm]).

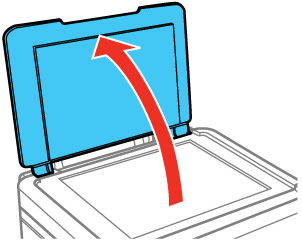

- Open the document cover.

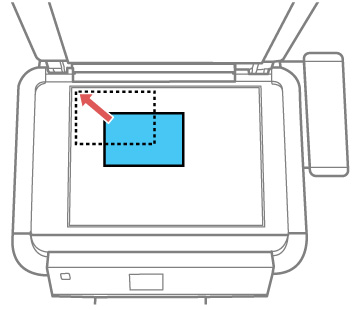

- Place your original facedown on the scanner glass with the top facing as shown. Slide the original to the edges of the indicated corner.
- To place
multiple originals, do one of the following:

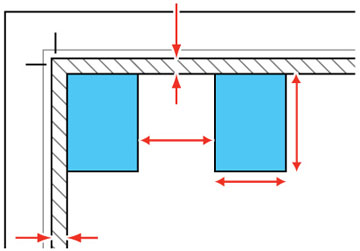

- Place photos 0.2 inch (5 mm) from the edges of the scanner glass. Depending on the size of the photos, you can place up to two photos of the same or different size on the scanner glass. Just make sure they are at least 0.2 inch (5 mm) away from each other.

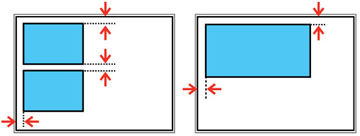

- If you are scanning using Epson Scan Full Auto Mode or thumbnail preview, place up to two photos 0.18 inch (4.5 mm) from the edges of the scanner glass and 0.79 inch (20 mm) away from each other. (Your photos must be at least 0.6 inch x 0.6 inch (15 × 15 mm) or larger.)
