Image Quality Settings - Image Menu

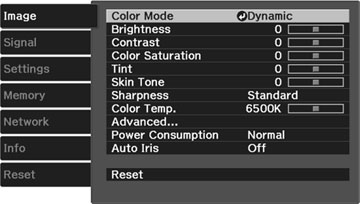

Settings on the Image menu let you adjust the quality of your image for the input source you are currently using. The available settings depend on the currently selected input source.

To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description
Color Mode See the list of available Color Modes Adjusts the vividness of image colors for various image types and environments
Brightness Varying levels available Lightens or darkens the overall image
Contrast Varying levels available Adjusts the difference between light and dark areas of the image
Color Saturation Varying levels available Adjusts the intensity of the image colors
Tint Varying levels available Adjusts the balance of green to magenta tones in the image
Skin Tone Varying levels available Makes fine adjustments to the color tone; higher values tint the image green and lower values tint the image red
Sharpness Varying levels available Adjusts the sharpness or softness of image details
Color Temp. (color temperature) Varying levels available Sets the overall color tone; higher values tint the image blue and lower values tint the image red
Advanced Gamma



Epson Super White*

Selects the various detailed color settings

Gamma: adjusts the gamma levels of the image

RGB: adjusts the offset and gain for each color

RGBCMY: adjusts the hue, saturation, and brightness for each color

Epson Super White: reduces over-exposure of whites in your image

Power Consumption High



Adjusts the brightness level, power usage, and fan noise; select ECO for the lowest level
Auto Iris Off


High Speed

Adjusts the projected luminance based on the image brightness when certain Color Modes are selected
* Can only be set when Color Mode is set to Natural, Cinema, or 3D Cinema and receiving an input signal from the HDMI 1 or HDMI 2 ports, or from the WirelessHD transmitter.
Note: The Brightness setting does not affect lamp brightness. To change the lamp brightness mode, use the Power Consumption setting.
Related concepts
Color Mode
