Removing the Document Mat

You must remove the document mat from the scanner to scan film or slides. This uncovers the transparency unit window beneath the mat.
  1. Make sure the cover cable is connected to the Option port.


    Note: Always turn off the scanner before connecting or disconnecting the cover cable.
  2. Open the scanner cover.

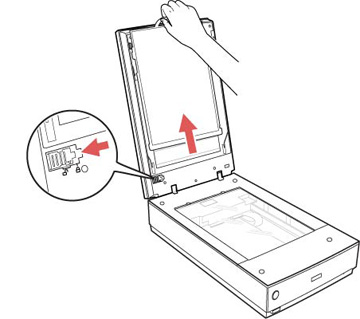

  3. Slide the document mat out from inside the scanner cover.
    Note: Make sure the transparency unit transportation lock is unlocked.


  4. Clean the transparency unit window and the scanner glass before placing your film or slides.
