Calibrating Automatically

You do not need the pens or a computer for Auto Calibration.
Note: You can start Auto Calibration by pressing the User button on the remote control, by pressing and holding the A/V Mute button on the projector for three seconds, or by pressing the Menu button on the remote control as described here.
  1. Press the Menu button, select the Extended menu, and press Enter.


  2. Select the Easy Interactive Function setting and press Enter.


  3. Select Auto Calibration and press Enter.


  4. Adjust the image focus, if necessary.

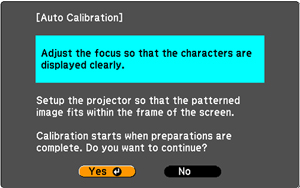

  5. Press Enter to select Yes. A pattern appears then disappears, and the system is calibrated. If you see a message that calibration failed, check for obstacles, disable the Quick Corner and Keystone settings, and retry the Auto Calibration. If you still see a message that calibration failed, you need to calibrate manually.
The cursor location and pen position should match after calibration. If not, you may need to calibrate manually.
Parent topic: Pen Calibration
