Using the Pens

Your projector came with an orange pen (Interactive Pen A), identified by the color on the end of the pen. You can purchase a second pen with a blue end (Interactive Pen B). You can use either pen, or both pens at the same time (one of each color), with Easy Interactive Tools. You can also purchase the Interactive Pen Extender to increase your reach with the pen.

Make sure the pen batteries are installed.

Note: The pen turns off automatically after 20 minutes of inactivity. Tap the pen tip or press the button on the side to turn the pen back on.

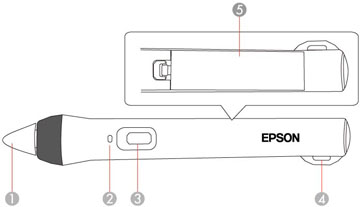

1	Pen tip
2	Battery light
3	Power/function button
4	Attachment for optional strap or cord
5	Battery cover

To turn on the pen, tap the pen tip or press the power/function button.
Note: If you press the button, the battery light flashes briefly, then turns off. If the battery is low, the battery light flashes continuously.

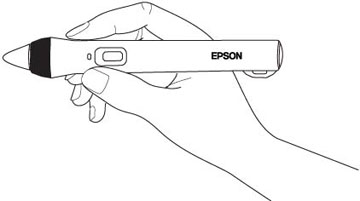

For best performance, hold the pen perpendicular to the board, as shown below. Do not cover the black section near the tip of the pen.

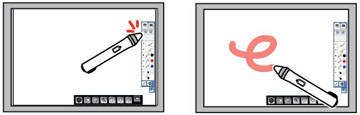

To write or draw on the projection surface in annotation mode or whiteboard mode, do the following:
- To select a projected item, such as an icon, tap the projection surface with the pen tip.
- To draw on the projected screen, tap the projection surface with the pen and drag it as necessary.
- To move the pointer, hover over the surface without touching it.
To use the pen as a mouse in PC Interactive mode, select the icon and do the following:
- To left-click, tap the board with the pen tip.
- To double-click, tap twice.
- To right-click, press the board with the pen for about 3 seconds.
- To click and drag, tap and drag with the pen.
- To move the cursor, hover over the board without touching it.
  Note: If you do not want to use the hovering feature, you can turn it off using the Easy Interactive Function setting in the projector's Extended menu.
