Replacing the Air Filter

You need to replace the air filter in the following situations:

You can replace the air filter while the projector is mounted to the ceiling or placed on a table.

  1. Turn off the projector and unplug the power cord.

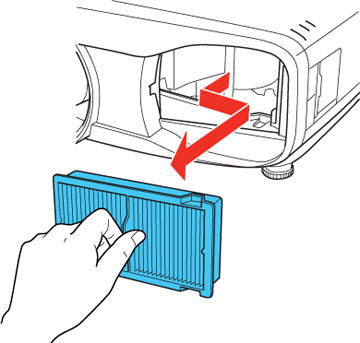

  2. Press in on the inner edge of the air filter cover to release the latch, then pull to remove.


  3. Pull the air filter out of the projector.


    Note: Air filters contain polypropylene. Dispose of used air filters according to local regulations.

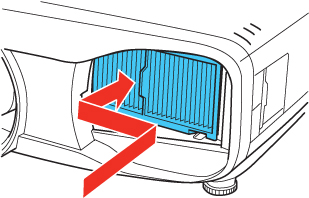

  4. Place the new air filter in the projector as shown.


  5. Attach the air filter cover and press gently until it clicks into place.
