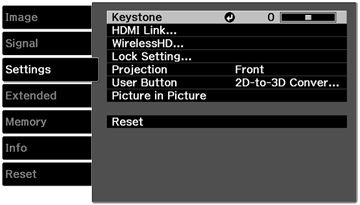

| Keystone
|
Varying levels available |
Adjusts image shape to rectangular
(vertically) |
| HDMI Link
|
Device
Connections
HDMI Link
Power On Link
Power Off Link
|
Adjusts the HDMI Link options that allow the
projector remote to control HDMI-connected devices that support the
CEC standard
Device Connections: lists the
devices connected to the HDMI1 and
HDMI2 ports
HDMI Link: enables or disables
the HDMI Link function
Power On Link: controls what
happens when you turn on the projector or a linked device
-
PJ
-> Device or Bidirectional: turns on the linked device when
the projector is turned on
-
Device
-> PJ or Bidirectional:
turns on the projector when the linked device is turned on
Power Off Link: controls whether
linked devices are turned off when the projector is turned
off |
| Lock Setting
|
Child Lock
Control Panel Lock
|
Controls projector button locking to secure the
projector
Child Lock: locks the power
button
Control Panel Lock: locks all
buttons except the power button |
| Projection
|
Front
Front/Ceiling
Rear
Rear/Ceiling
|
Selects the way the projector faces the screen
so the image is oriented correctly |
| User Button
|
2D-to-3D
Conversion
3D Depth
3D Brightness
Inverse 3D Glasses
Power Consumption
Info
|
Assigns a menu option to the User button on the remote control for one-touch
access |
| Picture in
|
See the list of available Picture in Picture
options |
Adjusts the size and location of the
sub-screen, swaps sources and exits Picture in Picture mode |
