Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.
Note: The web setup and control features support Microsoft Internet Explorer 8.0 or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.
Note: If you set Standby Mode to Communication On, you can use a web browser to select settings and control projection even if the projector is in standby mode.
  1. Make sure the projector is turned on.
  2. Start your web browser on a computer or device connected to the network.
  3. Type the projector's IP address into the browser's address box and press the computer's Enter key.
    Note: You may need to log in before you see the Web Control screen. If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)
    You see the Web Control screen.

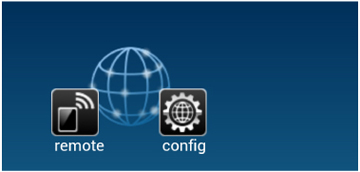

    Note: If you connect from a web browser on a smartphone or tablet, a screen with two options is displayed. Select remote to display the Web Remote page, or select config to display the Web Control page.


  4. To select projector menu settings, select the name of the menu and follow the on-screen instructions.
  5. To control projection remotely, select the Web Remote option. You see a screen like this:


    1 Power on button control
    2 Input source selection controls (some buttons may not be available depending on your available projector ports)
    3 Freeze button control
    4 A/V Mute button control
    5 Page Up and Page Down button controls
    6 Closed caption control
    7 Volume button controls
    8 Source search control
    9 Standby button control
  6. Select the icon corresponding to the projector function you want to control.
