Network
administrators can install SNMP (Simple Network Management
Protocol) software on network computers so they can monitor
projectors. If your network uses this software, you can set up the
projector for SNMP monitoring.
Press
the Menu button.
Select
the Network menu and press
Enter.
Select
Network Configuration and press
Enter.
Do one
of the following:
Select the
Others menu and press Enter.
PowerLite Pro G6870/G6970WU

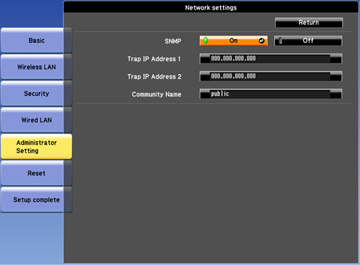

Select the
Administrator Setting menu and press
Enter, then select the SNMP menu and press Enter.
PowerLite Pro
G6070W/G6170/G6270W/G6470WU/G6570WU/G6770WU
Enter up
to two IP addresses to receive SNMP notifications, using 0 to 255
for each address field.
Note:To
enter the IP address using the numeric keys on the remote control,
press and hold the Num
button. Do not use these addresses: 127.x.x.x or 224.0.0.0
through 255.255.255.255 (where x is a number from 0 to
255).
Enter a
community name (PowerLite
G6070W/G6170/G6270W/G6470WU/G6570WU/G6770WU). You can enter
up to 32 single-byte alphanumeric characters.
When you
finish selecting settings, select Complete or Setup
complete and follow the on-screen instructions to save your
settings and exit the menus.
