Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Front

Rear

Front ceiling

Rear ceiling

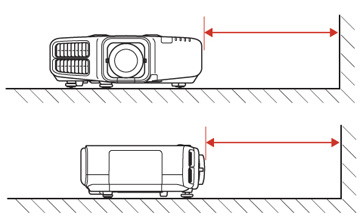

Note: Be sure to leave at least 20 inches (50 cm) of space in front of the air exhaust and intake vents and, when setting up multiple projectors, 20 inches (50 cm) of space between the projectors.

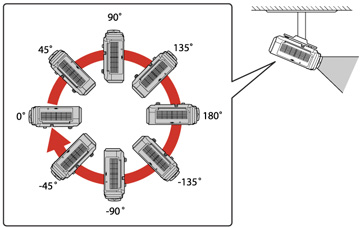

If you mount the projector to the ceiling, install it within the following angles:

Vertically: Any angle in a complete 360 degree circle.
Horizontally: Within the adjustment range of the rear adjustable feet.

If you project from the ceiling or from the rear, select the correct Projection setting and, if necessary, turn on the Inv Direction Button setting. If you installed the projector at an angle, select the Direction setting.

Note: Selecting an incorrect Direction setting may shorten the lamp life.
