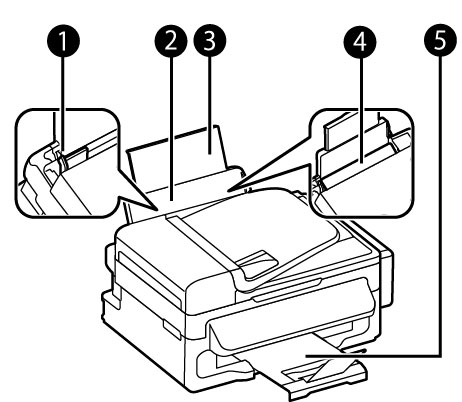

Product Parts - Top and Front
1
Edge guide
2
Sheet feeder
3
Paper support
4
Feeder guard
5
Output tray

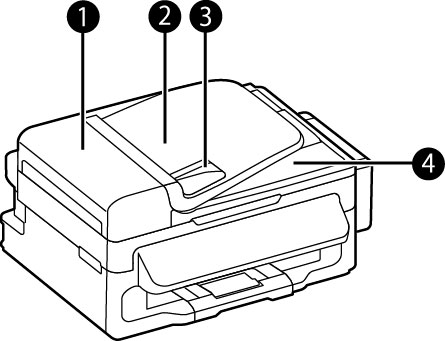

1
ADF cover
2
Automatic Document Feeder (ADF)
3
ADF edge guide
4
ADF output tray

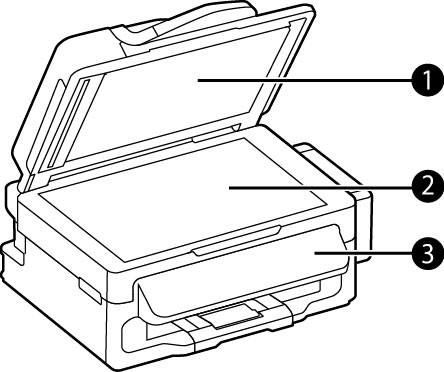

1
Document cover
2
Scanner glass
3
Control panel
