Correcting Image Shape with the Keystone Buttons

You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides.
Note: To provide the best possible image quality, adjust the projector's position to correct the image shape. If this isn't possible, use the keystone correction buttons on the projector to correct the image shape.
  1. Turn on the projector and display an image.
    Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.
    Note: You can also display the pattern by pressing the User button on the remote control (if the test pattern is assigned to this button).
  2. Press one of these keystone buttons on the control panel to display the Keystone adjustment screen.


  3. Press a keystone button on the projector's control panel to adjust the image shape.

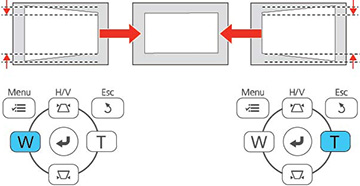

    EX3240/VS240



    EX5240/EX5250 Pro/EX7240 Pro/EX9200 Pro/VS340/VS345



    After correction, your image is slightly smaller.
    Note: If the projector is installed out of reach, you can also correct the image shape with the remote control using the Keystone settings in the projector menus.
