Projector Parts - Control Panel

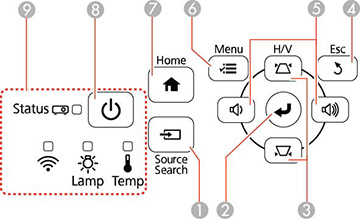

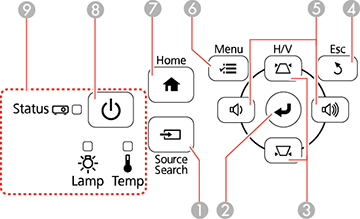

EX5240/EX5250 Pro/VS340/VS345



EX7240 Pro/EX9200 Pro



1 Source Search button (searches for connected sources)
2 Enter button (selects options)
3 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons
4 Esc button (cancels/exits functions)
5 Volume adjustment buttons (adjust speaker volume) and arrow buttons
6 Menu button (accesses projector menu system)
7 Home button (accesses source selection, projector help information, and other features)
8 Power button and light
9 Projector status lights

EX3240/VS240



1 Source Search button (searches for connected sources)
2 Enter button (selects options)
3 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons
4 Esc button (cancels/exits functions)
5 W (Wide)/T (Tele) buttons (adjust projected image size), horizontal keystone adjustment buttons (adjust screen shape), and arrow buttons
6 Menu button (accesses projector menu system)
7 Home button (accesses source selection, projector help information, and other features)
8 Power button and light
9 Projector status lights
