Printable Area Specifications

Note: Print quality may decline in the shaded areas shown here due to the printer mechanism.

Single sheets - normal printing



1 Margin: 0.12 inch (3 mm) minimum
2 Reduced print quality area/top: 1.61 inch (41 mm) minimum
3 Reduced print quality area/bottom: 1.46 inch (37 mm) minimum

Single sheets - borderless printing



1 Reduced print quality area/top: 1.73 inch (44 mm) minimum
2 Reduced print quality area/bottom: 1.57 inch (40 mm) minimum

Envelopes



1 Left/right margins: 0.12 inch (3 mm) minimum
2 Top/bottom margins: 0.20 inch (5 mm) minimum
3 Reduced print quality area/right: 0.71 inch (18 mm) minimum
4 Reduced print quality area/left: 1.61 inch (41 mm) minimum

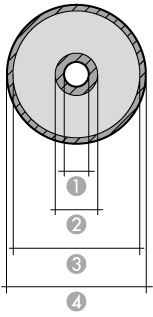

CD/DVD



1 Minimum inner margin: 0.71 inch (18 mm)
2 Inner reduced print quality area: 1.69 inch (43 mm)
3 Outer reduced print quality area: 4.57 inch (116 mm)
4 Maximum outer margin: 4.72 inch (120 mm)
