Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.
  1. Press the Menu button.
  2. Select the Network menu and press Enter.
  3. Select Network Configuration and press Enter.

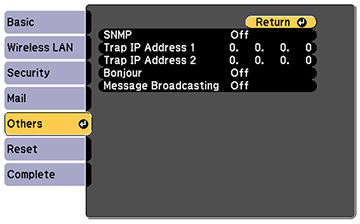

  4. Select the Others menu and press Enter.


  5. Enter up to two IP addresses to receive SNMP notifications, using 0 to 255 for each address field.
    Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a number from 0 to 255).
  6. If you are connecting to a network using Bonjour, turn on the Bonjour setting.
  7. If you want this projector to receive broadcasted messages over the network, turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using the Message Broadcasting plug-in for EasyMP Monitor (Windows only).
  8. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
Parent topic: Using the Projector on a Network
