- When the Roll Paper Margin setting is set to Normal, your product sets the top and bottom margins to 0.6 inch (15 mm) and the side margins to 0.12 inch (3 mm).
- When the Roll Paper Margin setting is set to a different option, the margin size varies depend on the setting and on the number of passes selected in your RIP software, as described in the following tables.

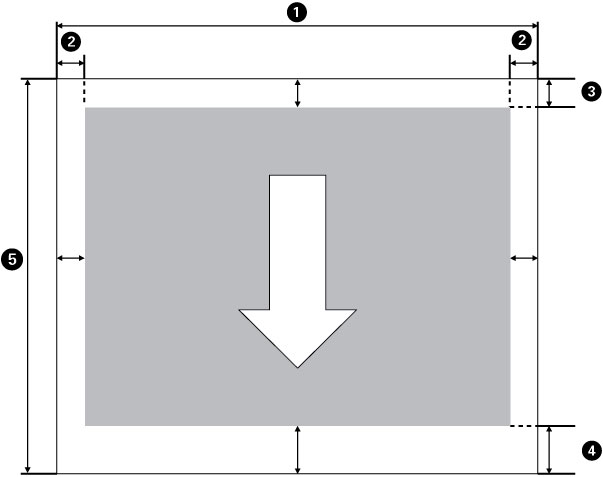

| 1 | Maximum media width |
| 2 | Side margins |
| 3 | Bottom margin |
| 4 | Top margin |
| 5 | Maximum media length |
| Roll Paper Margin setting | Margins |
|---|---|
| Normal | Top and bottom margins: 0.6 inch (15 mm)
Side margins: 0.12 inch (3 mm) |
| Top15mm/Bottom15mm | Top and bottom margins: 0.6 inch (15 mm)
Side margins: 0.12 inch (3 mm) |
| Top35mm/Bottom15mm | Top margin: 0.6 inch (15 mm)
Bottom margin: 1.38 inches (35 mm) Side margins: 0.12 inch (3 mm) |
| Top15mm/Bottom150mm | Top margin: 0.6 inch (15 mm)
Bottom margin: 5.9 inches (150 mm) Side margins: 0.12 inch (3 mm) |
| Top5mm/Bottom5mm | Top and bottom margins: 0.2 inch (5 mm)
Side margins: 0.12 inch (3 mm) |
| 15mm | All margins 0.6 inch (15 mm) |
- Premium Glossy 250
- Premium Semigloss 250
- Premium Luster 260
- Premium Semimatte 260
360 × 720 2 pass mode
| Roll Paper Margin setting | Margins |
|---|---|
| Normal | Top margin: 1.14 inches (29 mm)
Bottom margin: 0.6 inch (15 mm) Side margins: 0.12 inch (3 mm) |
| Top15mm/Bottom15mm | Top margin: 1.14 inches (29 mm)
Bottom margin: 0.6 inch (15 mm) Side margins: 0.12 inch (3 mm) |
| Top35mm/Bottom15mm | Top margin: 1.92 inches (49 mm)
Bottom margin: 0.6 inch (15 mm) Side margins: 0.12 inch (3 mm) |
| Top15mm/Bottom150mm | Top margin: 1.14 inches (29 mm)
Bottom margin: 5.9 inches (150 mm) Side margins: 0.12 inch (3 mm) |
| Top5mm/Bottom5mm | Top margin: 0.75 inch (19 mm)
Bottom margin: 0.2 inch (5 mm) Side margins: 0.12 inch (3 mm) |
| 15mm | Top margin: 1.14 inches (29 mm)
Bottom and side margins: 0.6 inch (15 mm) |
360 × 720 3 pass mode
| Roll Paper Margin setting | Margins |
|---|---|
| Normal | Top margin: 1.22 inches (31 mm)
Bottom margin: 0.6 inch (15 mm) Side margins: 0.12 inch (3 mm) |
| Top15mm/Bottom15mm | Top margin: 1.22 inches (31 mm)
Bottom margin: 0.6 inch (15 mm) Side margins: 0.12 inch (3 mm) |
| Top35mm/Bottom15mm | Top margin: 2.0 inches (51 mm)
Bottom margin: 0.6 inch (15 mm) Side margins: 0.12 inch (3 mm) |
| Top15mm/Bottom150mm | Top margin: 1.22 inches (31 mm)
Bottom margin: 5.9 inches (150 mm) Side margins: 0.12 inch (3 mm) |
| Top5mm/Bottom5mm | Top margin: 0.83 inch (21 mm)
Bottom margin: 0.2 inch (5 mm) Side margins: 0.12 inch (3 mm) |
| 15mm | Top margin: 1.22 inches (31 mm)
Bottom and side margins: 0.6 inch (15 mm) |
