Note: Print
quality may decline in the shaded areas shown here due to the
printer mechanism.

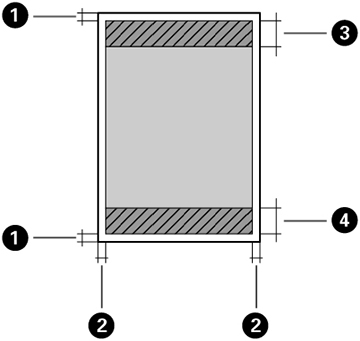

Single sheets - normal printing
| 1 |
Margin: 0.12 inch (3
mm) minimum |
| 2 |
A5
(5.8 × 8.2 inches [148 × 210 mm])
paper: 0.39 inch (10.0 mm)
Paper smaller than A5
(5.8 × 8.2 inches [148 × 210 mm]):
0.12 inch (3.0 mm) |
| 3 |
Reduced print quality area/top:
1.46 inches (37 mm) minimum |
| 4 |
Reduced print quality area/bottom:
1.56 inches (39 mm) minimum |
Single sheets - borderless
printing
|
|
| 1 |
Reduced print quality area/top:
1.57 inches (40 mm) minimum |
| 2 |
Reduced print quality area/bottom:
1.65 inches (42 mm) minimum |
Envelopes
| 1 |
Left/right margins:
0.12 inch (3 mm) minimum |
| 2 |
Top/bottom margins: 0.20 inch (5
mm) minimum |
| 3 |
Reduced print quality area/right:
0.71 inches (18 mm) minimum |
| 4 |
Reduced print quality area/left:
1.46 inches (37 mm) minimum |
