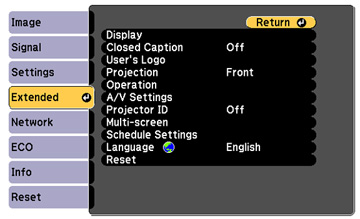

Settings on the Extended menu let you customize various projector setup features that control its operation.
| Setting | Options | Description |
|---|---|---|
| Display | Messages
Display Background Startup Screen A/V Mute |
Selects various display options
Messages: controls whether messages are displayed on the screen Display Background: selects the screen color or logo to display when no signal is received Startup Screen: controls whether a special screen appears when the projector starts up A/V Mute: selects the screen color or logo to display when A/V Mute is turned on |
| Closed Caption | Off
CC1 CC2 |
Controls use of closed captions and selects the closed caption type (closed captions are only visible for NTSC signals connected through the S-Video or Video ports) |
| User's Logo | – | Creates a screen that the projector displays to identify itself and enhance security |
| Projection | Front
Front/Ceiling Rear Rear Ceiling |
Selects the way the projector faces the screen so the image is oriented correctly |
| Operation | Direct Power On
High Altitude Mode Startup Source Search Auto Power On Date & Time |
Selects various operation options
Direct Power On: lets you turn on the projector without pressing the power button High Altitude Mode: regulates the projector’s operating temperature at altitudes above 4921 feet (1500 m) Startup Source Search: automatically detects the image signal that is input when the projector is turned on Auto Power On: lets you turn on the projector by turning on a computer connected to the Computer port Date & Time: adjusts the projector's system time and date settings; optionally, you can select Daylight Savings Time settings, select the time difference from Coordinated Universal Time (UTC), and set automatic time updates through an Internet time server |
| A/V Settings | A/V Output
Audio Output HDMI1 Audio Output HDMI2 Audio Output |
Selects the following when the projector is in
standby mode (turned off):
A/V Output: The Always On setting lets the projector output audio and video signals even while it is standby mode. Available only when Standby Mode is set to Communication On Audio Output: Selects the audio input port when projecting images from the Computer, Video, and USB-A ports. HDMI1 Audio Output and HDMI2 Audio Output: Selects which Audio port provides audio output when viewing images from the HDMI 1/MHL and HDMI 2 ports on the projector. |
| Projector ID | Off
1 through 9 |
Assigns an ID for the projector when you use multiple projectors |
| Multi-screen | Adjustment Level
(1 to 5)
Brightness Correct. Color Correct. |
Matches display qualities and colors of multiple projectors |
| Schedule Settings | Various scheduling options available | Sets the projector's date and time settings and schedules various tasks |
| Language | Various languages available | Selects the language for projector menu and message displays (not changed by Reset option) |
