If the cursor location and pen position do not match after auto calibration, you can calibrate manually.

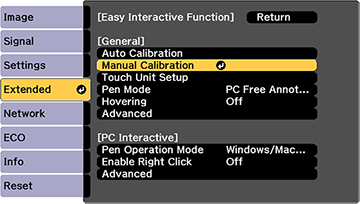

button, select the
menu, and press
Easy Interactive Function
setting and press
Adjust the image focus, if necessary.

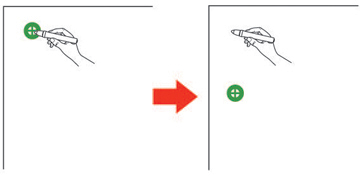

A flashing green circle appears in the upper left corner of your projected image.
Touch the center of the circle with the tip of the pen.
The circle disappears, and you see another circle below the first one.

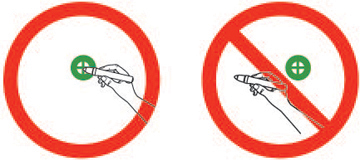

For the most accurate calibration, make sure you touch the center of the circle.
Make sure you are not blocking the signal between the pen and the interactive receiver (next to the projection window on the projector).
Touch the center of the next circle, then repeat. When you get to the bottom of the column, the next circle appears at the top of a new column.
If you make a mistake, press the
button on the remote control to go back to the previous circle. To restart the calibration process, press and hold the
button for 2 seconds.
Continue until all of the circles disappear.
