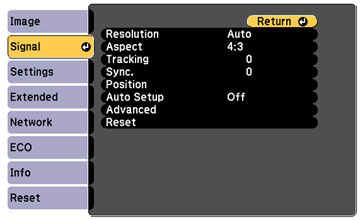

Input Signal Settings - Signal Menu

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.

Note: You can restore the default settings of the Position, Tracking, and Sync settings by pressing the Auto button on the remote control.

To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description
Resolution Auto



Sets the input signal resolution if not detected automatically using the Auto option
Aspect See the list of available aspect ratios Sets the aspect ratio (width-to-height ratio) for the selected input source
Overscan Auto




Changes the projected image ratio to make the edges visible by a selectable percentage or automatically
Tracking Varying levels available Adjusts signal to eliminate vertical stripes in computer images
Sync. Varying levels available Adjusts signal to eliminate fuzziness or flickering in computer images
Position Up, down, left, right Adjusts the image location on the screen
Auto Setup On


Automatically optimizes computer image quality
Advanced HDMI Video Range

Input Signal

Video Signal

HDMI Video Range: Sets the video range to match the setting of the device connected to the HDMI input port
  • Auto: detects the video range automatically
  • Normal: normally for images from a device other than a computer; can also be selected if the black areas of the image are too bright
  • Expanded: normally for images from a computer; can also be selected if the image is too dark

Input Signal: Specifies the signal type from input sources connected to computer ports

  • Auto: detects signals automatically
  • RGB: corrects color for computer/RGB video inputs
  • Component: corrects color for component video inputs

Video Signal:Specifies the signal type from the input sources connected to the video ports; select Auto to automatically detect the signal
