If
you installed the optional short throw lens (ELPLU02/ELPLU03/ELPLU04) and used the lens shift option
to shift the lens, you can focus the image using the distortion and
focus rings.
-
Turn on the projector and display an
image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern button on the remote control.
-

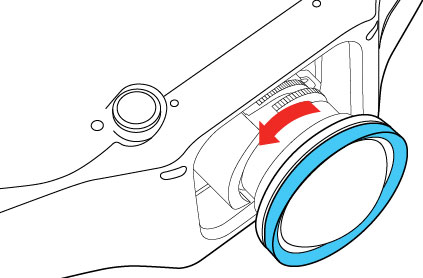

Carefully rotate the distortion ring all the
way counter-clockwise.
Note: Be careful not to shift the short throw lens when adjusting it to prevent the projected image from shifting.
- Support the front of the lens with one hand and use the other to carefully rotate the focus ring until the center of the image is focused.
- Rotate the distortion ring until the edges of the image are also focused.
- Rotate the focus ring again to focus the entire screen image.
- If the center of the image out of focus, rotate the distortion ring again to bring the area into focus.
