You

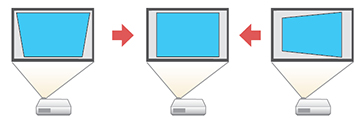

can use the projector's H/V Keystone setting to correct the shape
of an image that is unevenly rectangular on the sides.
Turn on the projector and display an
image.
Note: You can
display a pattern to aid in adjusting the projected image using the
Settings menu.
Note: You can
also display a pattern to aid in adjusting the projected image
using the Test Pattern button on
the remote control.
Press the Menu button.
Select the Settings menu and press Enter.
Select the Geometric Correction setting and press
Enter.
Select the H/V-Keystone setting and press Enter. Then press Enter again. You see the H/V-Keystone
adjustment screen:
Use the arrow buttons on the projector or the
remote control to select between vertical and horizontal keystone
correction and to adjust the image shape as necessary.
V-Keystone
V-Balance
H-Keystone
H-Balance
When you are finished, press Esc. After correction, your image is
slightly smaller.
