Basic Control
Note: If the
Remote Password is set to On, you
need to enter your user name and password. (The default username is
EPSONREMOTE and the default
password is guest).
1 |
Returns to the Home
screen |
2 |
Turns on the projector |
3 |
Input source selection
controls |
4 |
A/V
Mute button control |
5 |
Volume button controls |
6 |
Searches for sources |
7 |
Turns off the projector |
OSD Control Pad
1 |
Returns to the Home
screen |
2 |
Displays the projector's setting
menus |
3 |
Use your finger or mouse to
navigate the menus |
4 |
Returns settings to their default
values |
5 |
Returns to the previous menu |
6 |
Displays help topics |
Note: You
cannot change some settings using Epson Web Control.
Lens Control
Focus/Distortion
screen
1 |
Returns to the Home
screen |
2 |
Focus adjustment slider |
3 |
Focus adjustment buttons |
4 |
Distortion adjustment slider (not
available for ELPLU02) |
5 |
Distortion adjustment buttons (not
available for ELPLU02) |
6 |
Displays the Focus/Distortion
screen |
7 |
Displays the Zoom screen |
8 |
Displays the Lens Shift
screen |
9 |
Displays the Test Pattern
screen |
10 |
Displays the Memory screen |
Zoom screen
Note: Zoom is
not available for ELPLX01 and ELPLR04.
1 |
Zoom adjustment
slider |
2 |
Zoom adjustment buttons |
Lens Shift screen
1 |
The current image
position is displayed as a blue square and the new image position
is displayed as a red square |
2 |
Displays the vertical image
position; select to change the value |
3 |
Moves the image position up, down,
left, or right |
4 |
Moves the lens to the home
position |
5 |
Displays the horizontal image
position; select to change the value |

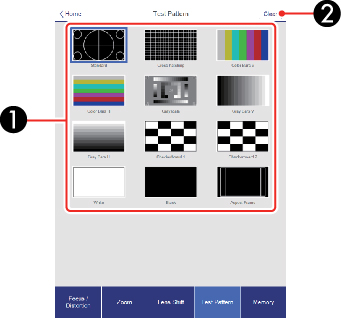

Test Pattern screen
1 |
Displays available
test patterns; select to project a test pattern |
2 |
Turns off test pattern
display |
Memory screen
1 |
Overwrites your
current settings with saved settings |
2 |
Saves your current settings to
memory |
3 |
Displays a list of saved
memories |
4 |
Erases a saved memory |
5 |
Renames a saved memory |
Status Information
1 |
Returns to the Home
screen |
2 |
Displays a list of monitored
items |
3 |
Displays the item status |
4 |
Select to view different status
information |
