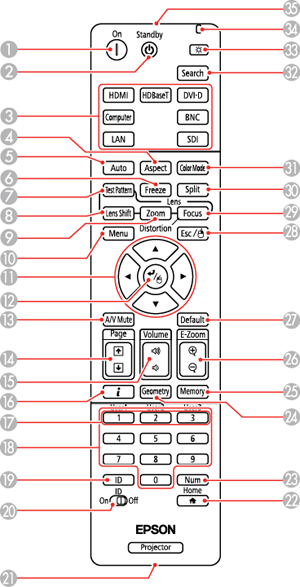

| 1 | On button (turns on the projector) |
| 2 | Standby button (turns off the projector) |
| 3 | Source buttons (select an image source) |
| 4 | Aspect button (selects the image aspect ratio) |
| 5 | Auto button (automatically adjusts computer images) |
| 6 | Freeze button (stops video action) |
| 7 | Test Pattern button (displays a test pattern) |
| 8 | Lens Shift button (adjusts the image position) |
| 9 | Zoom button (changes the image size) |
| 10 | Menu button (accesses projector menu system) |
| 11 | Arrow buttons (move through on-screen options and move pointer) |
| 12 | Enter button (selects options and left mouse button) |
| 13 | A/V Mute button (turns the video and audio on or off) |
| 14 | Page up and down buttons (scroll through image files when projecting from a computer over a network connection) |
| 15 | Volume up and down buttons (adjust speaker volume) |
| 16 | i button (displays the Info menu) |
| 17 | User1, User2, and User3 buttons (open menu assigned by user) |
| 18 | Numeric buttons (enter numbers) |
| 19 | ID button (hold down and use numeric keys to select projector to control) |
| 20 | ID switch (control one or all projectors) |
| 21 | Remote port (connects to a remote control cable) |
| 22 | Home button (displays the home screen) |
| 23 | Num button (hold down and use numeric keys to enter numbers) |
| 24 | Geometry button (corrects image distortion) |
| 25 | Memory button (saves and applies presets) |
| 26 | E-Zoom +/– buttons (zoom into and out of the image) |
| 27 | Default button (resets settings to their default values in the projector menu system) |
| 28 | Esc button (cancels/exits functions and right mouse button) |
| 29 | Focus button (adjusts the image focus) |
| 30 | Split button (splits the screen between two inputs) |
| 31 | Color Mode button (selects display modes) |
| 32 | Search button (searches for connected sources) |
| 33 | Light button (lights up the remote control buttons temporarily) |
| 34 | Indicator light (lights up when the remote control is in use) |
| 35 | Remote control signal emitter (emits remote control signals) |
