Selecting an Image Source

If you connected multiple image sources to the projector, such as a computer and DVD player, you may want to switch from one image source to the other.

Note: If the Auto Source Search setting in the Extended menu is enabled, the projector automatically switches to another detected image source if the signal to the current image source is lost.

Make sure the connected image source you want to use is turned on.
For video image sources, insert a DVD or other video media and press its play button, if necessary.
Do one of the following:
- Press the Search button on the remote control or the Source Search button on the projector until you see the image from the source you want.

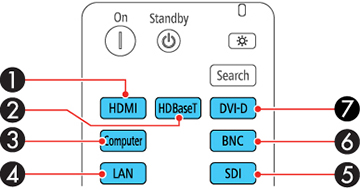

- Press the button for the source you want on the remote control.

  1 HDMI port source

  2 HDBaseT port source

  3 Computer port source

  4 Network port source

  5 SDI port source (Pro L1405U/L1500U/L1505U)

  6 BNC port source

  7 DVI-D port source
- Press the Home button on the remote control and select your image source.

1	HDMI port source
2	HDBaseT port source
3	Computer port source
4	Network port source
5	SDI port source (Pro L1405U/L1500U/L1505U)
6	BNC port source
7	DVI-D port source
