Attaching and Removing the Cable Clip

You can install the cable clip that came with your projector to provide additional support to the power cable (Pro L1405U/L1500U/L1505U).
  1. Connect the power cable to the projector.

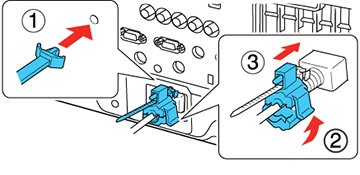

  2. Insert the end of the cable clip anchor into the cable clip slot near the power inlet.


  3. Place the open cable clip around the power cable, but don't lock it into place.
  4. Slide the cable clip onto the anchor and lock the clip onto the power connector as shown.
To remove the cable clip, open the clip and disconnect the power cable. Then pinch the sides of the cable clip anchor and carefully remove it from the cable clip slot.
