Attaching a Lens

You can attach a compatible lens to the projector.
Caution:
Unplug the power cord from the projector before attaching the lens. Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.
  1. Pull the lens cover off of the projector.


  2. When using one of the following lenses, attach the lens connector cap: ELPLS04, ELPLU02, ELPLR04, ELPLW04, ELPLM06, ELPLM07, or ELPLL07.


  3. Slide the lock lever to the Release position (as shown) until you hear it click.

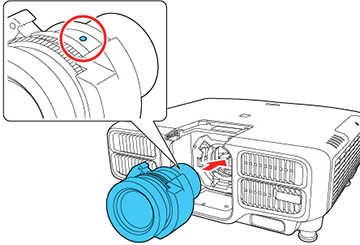

  4. Insert the lens straight into the projector's lens socket with the white dot facing up.

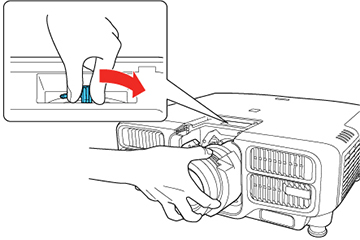

  5. Hold the lens firmly and slide the lock lever to the Lock position (as shown) until it locks.

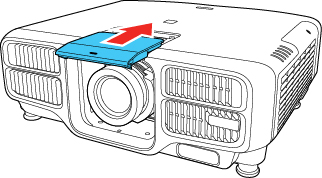

  6. Replace the lens cover.


  7. If prompted, select Yes to calibrate the lens.
    Note: Lens calibration helps the projector to correctly acquire the lens position and adjustment range, and can take up to 100 seconds to complete. When calibration is finished, the lens returns to the same position it was in before calibration. (ELPX01 returns to the standard position.)
  8. When using one of the following lenses, select the lens type in the Extended menu: ELPLS04, ELPLU02, ELPLR04, ELPLW04, ELPLM06, ELPLM07, or ELPLL07.
