Removing a Lens

You can remove a lens to replace it with a different lens.
Caution:
Remove the lens only when necessary and make sure the front of the projector is not facing up when you remove the lens. This prevents dirt or dust from entering the projector and lowering the projection quality. Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.
  1. Center the lens using the Lens Shift (remote) or Lens (control panel) button.
  2. Turn off the projector and unplug the power cord.

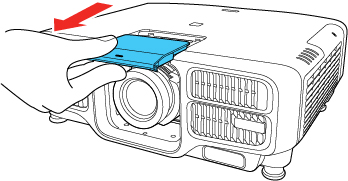

  3. Pull the lens cover off of the projector.


  4. Hold the lens firmly as you slide the lock lever to the Release position (as shown) until you hear it click.


  5. Gently pull the lens straight out of the projector.
