Replace the
scanner rollers when the number of scans exceeds the life cycle of
the rollers. Check the scanner roller counter to see when you need
to replace the rollers.
Note: The
illustrations show the ES-500W/ES-500WR, but the
instructions are the same for the ES-400.
- Pull down on the cover open lever and open the scanner cover.

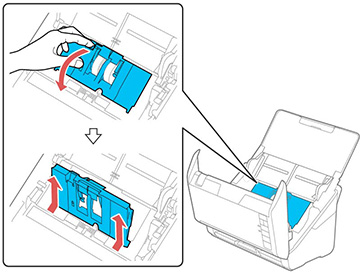

- Press down on the pickup roller cover latch and pull up the cover to remove it.

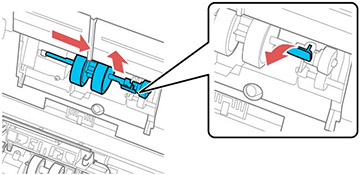

- Pull down the tab on the pickup rollers and slide the rollers to the right to remove them.

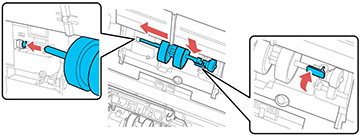

- To install the new pickup rollers, align the notches on the roller unit and slide it to the left. Press up on the tab to secure the rollers.

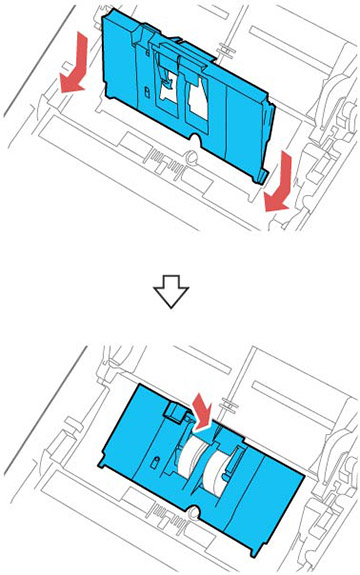

- Align
the bottom edge of the pickup roller cover into the notches as
shown and press it down until it clicks into place.
Note: If you are not able to close the cover, the pickup rollers are not installed correctly. Remove the roller unit and reinstall it, then try to close the cover again.

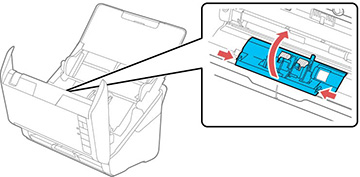

- Squeeze
the tabs on the sides of the separation roller cover and open the
cover.
Caution:Be careful not to apply too much force when opening the cover.
- Slide the separation roller to the left and remove it.

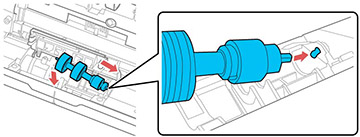

- To install a new separation roller, insert the end of the roller into the hole on the right side and lower the other end of the roller into place.
