Loading Paper in Cassette 1 (Upper Cassette)

You can load photo paper and other media in these sizes in the upper paper cassette:
Note: Do not remove or insert the paper cassette during printing.
  1. Close the output tray, if necessary.


    Note: As you slide in the output tray, there may be slight resistance and noise. This is normal.
  2. Raise the control panel.
  3. Open the front cover.

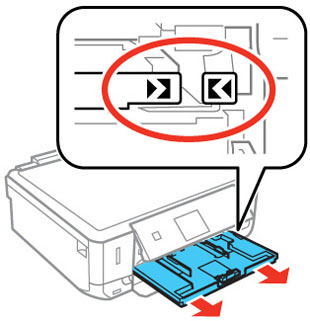

  4. Pull out the upper paper cassette. The upper cassette is labeled as shown.
    Note: If the cassette is too far inside the product to reach, turn off your product and turn it back on again to reset the cassette's position.
  5. Slide the edge guides outward.

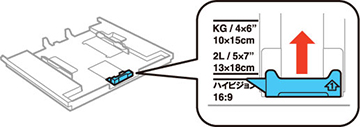

  6. Set the front edge guide to the position for the paper size you are using.


  7. Insert paper in the cassette with the glossy or printable side facedown.


    Note: Make sure the paper is loaded against the front edge guide and does not extend beyond the triangle symbol at the rear of the cassette.


  8. Slide the side edge guides against the paper, but not too tightly.


    Note: Make sure the paper fits under the tabs on the edge guides.

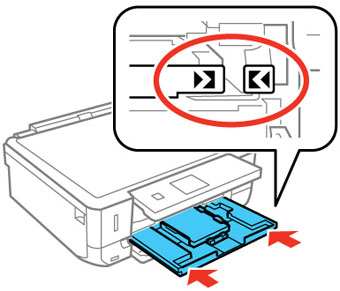

  9. Keeping the cassette flat, insert it into your product until the arrow marks on the tray and product line up.


  10. Lower the control panel.
  11. Select the size and type of paper you just loaded on the product LCD screen.
Always follow these paper loading guidelines:
