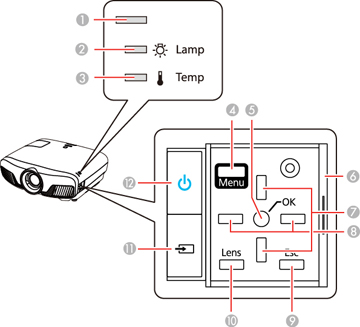

| 1 | Status light |
| 2 | Lamp light |
| 3 | Temp light |
| 4 | Menu button (accesses projector menu system) |
| 5 | OK button (selects options) |
| 6 | Control panel cover |
| 7 | Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons |
| 8 | Arrow buttons |
| 9 | Esc button (cancels/exits functions) |
| 10 | Lens button (cycles through lens adjustment options) |
| 11 | Source button (cycles through the list of sources) |
| 12 | Power button/light |
