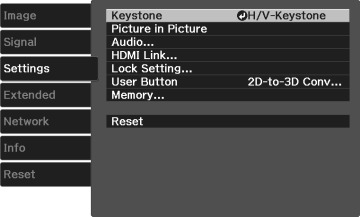

| Keystone
|
H/V-Keystone
Quick Corner
|
Adjusts the projected image shape
H/V Keystone: lets you manually
correct the angles of the horizontal and vertical sides
Quick Corner: select to adjust
the position of the four corners |
| Picture in
|
See the list of available Picture in Picture
options |
Adjusts the size and location of the
sub-screen, swaps sources and exits Picture in Picture mode |
| Audio
|
Volume
Inverse Audio
|
Adjust the projector's audio output
Volume: adjusts the volume
Inverse Audio: inverts the left
and right audio output channels; select On when projecting from a ceiling and playing
sound from the projector's speakers |
| HDMI Link
|
Device
Connections
HDMI Link
Audio Out Device
Power On Link
Power Off Link
Link Buffer
|
Adjusts the HDMI Link options that allow the
projector remote to control HDMI-connected devices that support the
CEC standard
Device Connections: lists the
devices connected to the HDMI1 and
HDMI2/MHL ports
HDMI Link: enables or disables
the HDMI Link function
Audio Out Device: selects which
port outputs audio
Power On Link: controls what
happens when you turn on the projector or a linked device
-
PJ
-> Device or Bidirectional: turns on the linked device when
the projector is turned on
-
Device
-> PJ or Bidirectional:
turns on the projector when the linked device is turned on
Power Off Link: controls whether
linked devices are turned off when the projector is turned off
Link Buffer: improves weak HDMI
Link connections |
| Lock Setting
|
Child Lock
Control Panel Lock
|
Controls control panel button locking to secure
the projector
Child Lock: locks the power
button when the projector is off
Control Panel Lock:
- Full Lock: locks all
buttons
- Partial Lock: locks all buttons
except the power button
- Off: no buttons locked
|
| User Button
|
2D-to-3D
Conversion
Power Consumption
Info
|
Assigns a menu option to the User button on the remote control for one-touch
access |
| Memory
|
Load Memory
Save Memory
Erase Memory
Rename Memory
|
Controls the saved projector settings and lens
positions
Load Memory: displays the list of
customized settings entries that you have created
Save Memory: saves the current
projector settings to the projector's memory
Erase Memory: lets you delete a
saved memory
Rename Memory: lets you rename a
saved memory using 9 predetermined name types or up to 12
characters in a customized name |
