If your
projectors are on a network and you have identified a master
projector, you can configure tiling automatically.
- Turn on the projector.
Note: Make sure nothing is blocking the built-in camera on the front of the projector.
- Press the Menu button.
- Select the Extended menu and press Enter.

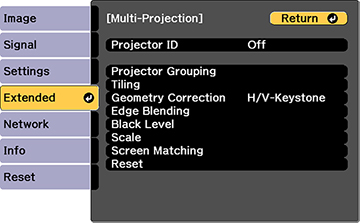

- Select Multi-Projection and press Enter. You see this screen:

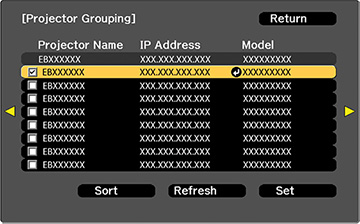

- Select Projector Grouping and press Enter. You see a screen like this:
- Press the up or down arrow buttons to highlight a projector and press Enter to place a checkmark next to each projector you want to use for tiling. Then select Set and press Enter.
- Select Tiling and press Enter.
- Select Tiling again and press Enter.
- Select Auto and press Esc.
- Select Location Setup and press Enter. The projected images are positioned automatically.
- When you see the message to assign projector IDs, select
Yes. When setup is
complete, you see a screen like this:
Note: If any of the images are not positioned correctly, select Manual in step 9 to locate the image manually.
- Select the input signal to display an image.
