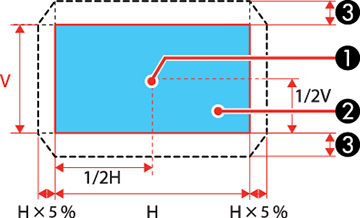

ELPLR05
1 | Center of lens |
2 | Projected image when lens shift is set to the home position |
3 | Maximum range: V × 15% |

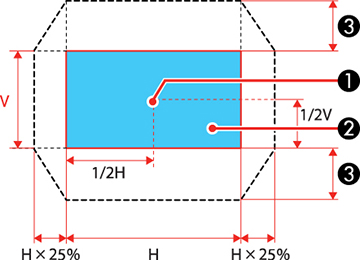

ELPLU05/ELPLL09/ELPLL10
1 | Center of lens |
2 | Projected image when lens shift is set to the home position |
3 | Maximum range: V × 55% |
ELPLW07/ELPLM12/ELPLM13/ELPLM14
1 | Center of lens |
2 | Projected image when lens shift is set to the home position |
3 | Maximum range: V × 65%; maximum range when performing screen matching: V × 60% (ELPLM13) |
