Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.
Note: Make sure you already connected the projector to your wired network using the LAN port.
  1. Turn on the projector.
  2. Press the Menu button.
  3. Select the Network menu and press Enter.

  4. Select Network Configuration and press Enter.
  5. Select the Basic menu and press Enter.

  6. Select the following basic options as necessary:
    • Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the projector over the network.
    • PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the PJLink protocol for projector control.
    • Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing the Remote or Basic Control screen in Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.)
    • Web Control Password lets you enter a password up to 8 alphanumeric characters long for accessing Epson Web Control. (Default user name is EPSONWEB; default password is admin.)
    • Projector Keyword lets you turn on a security password to prevent access to the projector by anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Multi PC Projection software to access the projector.
    • Display LAN Info lets you select how the projector displays network information. You can select an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.
    Note: Use the displayed keyboard to enter the name, passwords, and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

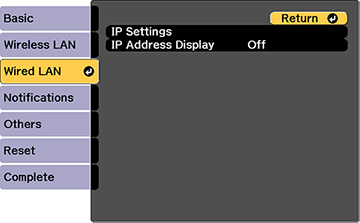

  7. Select the Wired LAN menu and press Enter.

  8. Select your IP Settings as necessary:
    • If your network assigns addresses automatically, turn on the DHCP setting.
    • If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet Mask, and Gateway Address as needed.
    Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on the remote control. To select a highlighted number, press Enter.
  9. To prevent display of the IP address on the standby screen, turn off IP Address Display.
  10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
