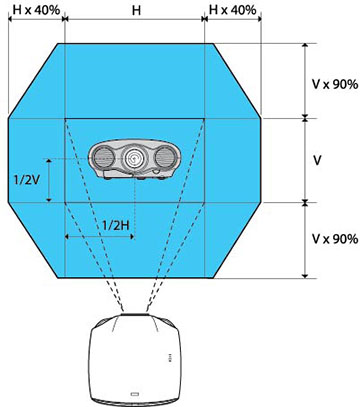

When using the Lens Shift function, the laser light
from the projection lens is diffused within the following
range:
When Lens Shift is at the maximum vertical position:
32° from the center of the lens
When Lens Shift is at the maximum horizontal position:
34° from the center of the lens
