Focusing the Image with Focus Help

You can use the projector's Focus Help feature to focus the image.
Focus Help works in these conditions:
  • Screen size is 100 inches (254 cm) or less
  • Projection distance is between 4.9 to 9.8 feet (1.5 to 3.0 m)
  • Projection angle is not more than 20º horizontally or 30º vertically away from the center of the screen
  • The room is not too bright
  1. Press the Focus Help button on the projector.

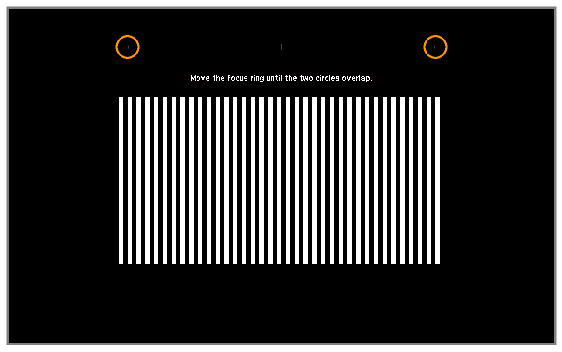

    You see a screen like this:

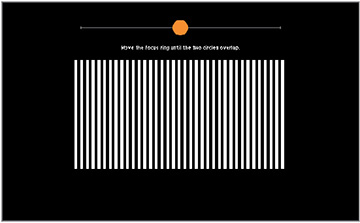

  2. Turn the focus ring until the two orange circles overlap.


  3. When you are finished, press Esc or Focus Help to exit.
