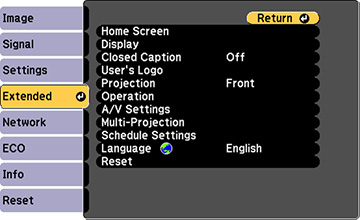

Home Screen
|
Home Screen Auto
Disp.
Custom Function 1
Custom Function 2
|
Select various options for the projector's Home screen
Home Screen Auto
Disp.: controls whether the Home Screen displays
automatically when the projector is turned on
Custom Function
1/Custom Function 2: lets
you customize the options displayed on the Home Screen and save
your settings as a preset |
Display
|
Messages
Display Background
Startup Screen
A/V Mute
|
Selects various display options
Messages: controls
whether messages are displayed on the screen
Display Background:
selects the screen color or logo to display when no signal is
received
Startup Screen:
controls whether a special screen appears when the projector starts
up
A/V Mute: selects
the screen color or logo to display when A/V Mute is turned
on |
Closed Caption
|
Off
CC1
CC2
|
Controls use of closed captions and selects the closed
caption type (closed captions are visible only for NTSC signals
connected through the Video
port) |
User's Logo
|
— |
Creates a screen that the projector displays to
identify itself and enhance security |
Projection
|
Front
Front/Ceiling
Rear
Rear/Ceiling
|
Selects the way the projector faces the screen so the
image is oriented correctly |
Operation
|
Direct Power On
High Altitude Mode
Auto Source Search
Auto Power On
Monitor Out Port
Date & Time
|
Selects various operation options
Direct Power On:
turns on the projector when you plug it in
High Altitude Mode:
regulates the projector’s operating temperature at altitudes above
4921 feet (1500 m)
Auto Source Search:
automatically detects the image signal being input when the
projector is turned on
Auto Power On:
automatically turns on the projector when it receives an image
signal (available only when Standby
Mode is set to Communication
On)
Monitor Out Port:
specifies the function of the Computer2/Monitor Out port
- Monitor Out:
select to output images to an external monitor
- Computer2: select
when inputting a computer or component video signal
Date & Time:
Adjusts the projector's date and time settings |
A/V Settings
|
A/V Output
Audio Output
HDMI1 Audio Output
HDMI2 Audio Output
|
Selects various audio and video output settings
A/V Output: select
to output audio and video to an external device when the projector
is in standby mode
Audio Output:
selects the audio input port
HDMI1 Audio Output
and HDMI2 Audio Output: select
the audio input port when projecting images from the HDMI
ports |
Multi-Projection
|
Multi-Projection
Projector ID
Color Mode
Color Matching
RGBCMY
|
Select various options when projecting from multiple
projectors
Multi-Projection:
set to On to match the display
quality of multiple projectors
Projector ID: sets
the projector to a particular ID number which allows you to use a
remote control to individually control projectors
Color Mode: adjusts
the vividness of image colors for various image types and
environments; make sure to select the same Color Mode setting for all the projectors
Color Matching:
corrects the difference between the tint and brightness of each
projected image.
RGBCMY: adjusts the
hue, saturation, and brightness for each color |
Schedule Settings
|
Various scheduling options |
Lets you schedule various projector tasks |
Language
|
Various languages available |
Selects the language for projector menu and message
displays (not changed by Reset
option) |
